Laser Cutting Parts Applications

Laser Cutting is a versatile and precise manufacturing process used across various industries due to its ability to cut, engrave, and shape materials with high accuracy. Here are some key applications of laser-cut parts:

Industrial Manufacturing
Automotive Parts
Metal Enclosures, Kiosks
Aerospace Components
Electronics
Medical Devices
Consumer Goods
Structural Components
Exhaust Components
Signage & Advertising
Renewable Energy Hydraulic parts
Household electrical parts Art & Sculpture

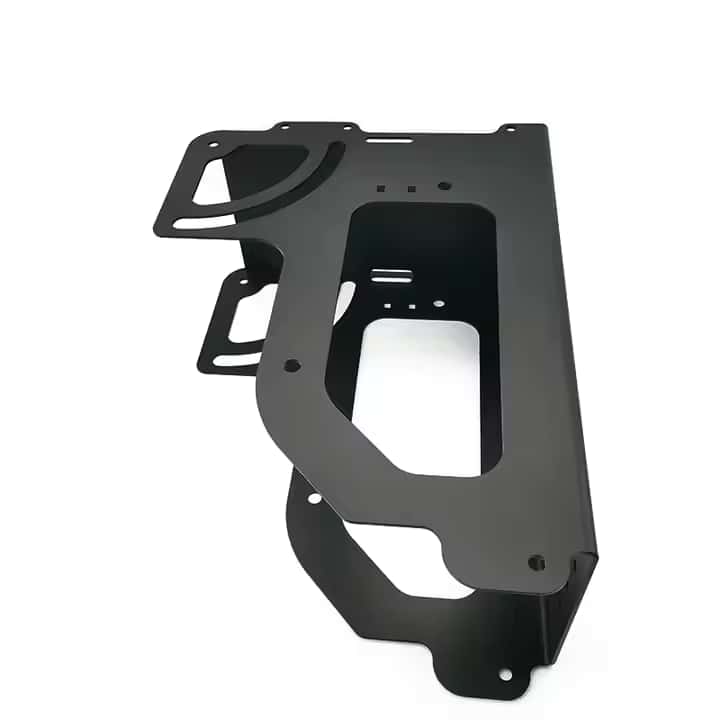

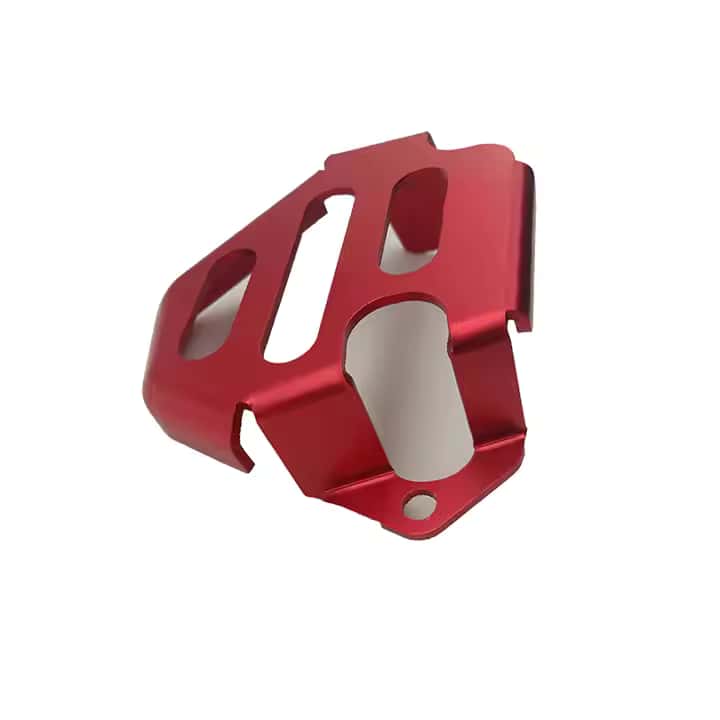

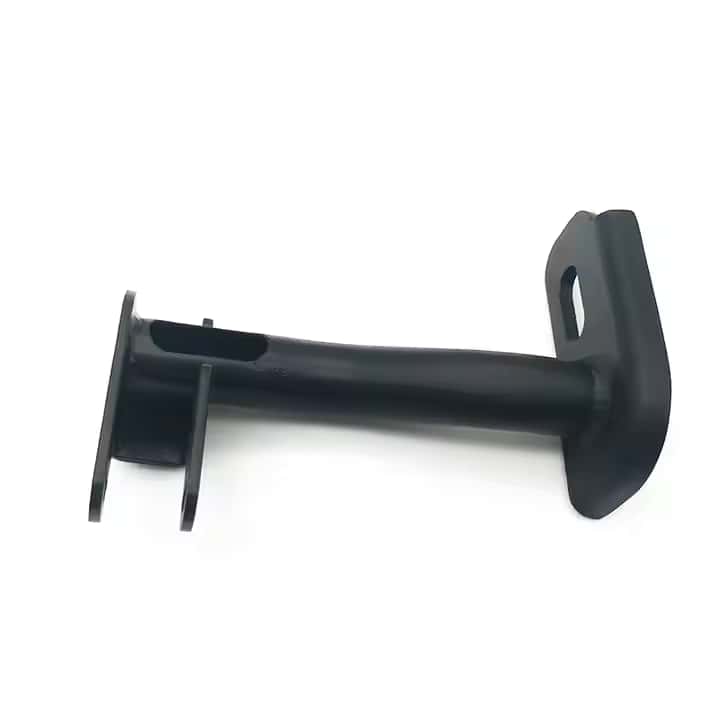

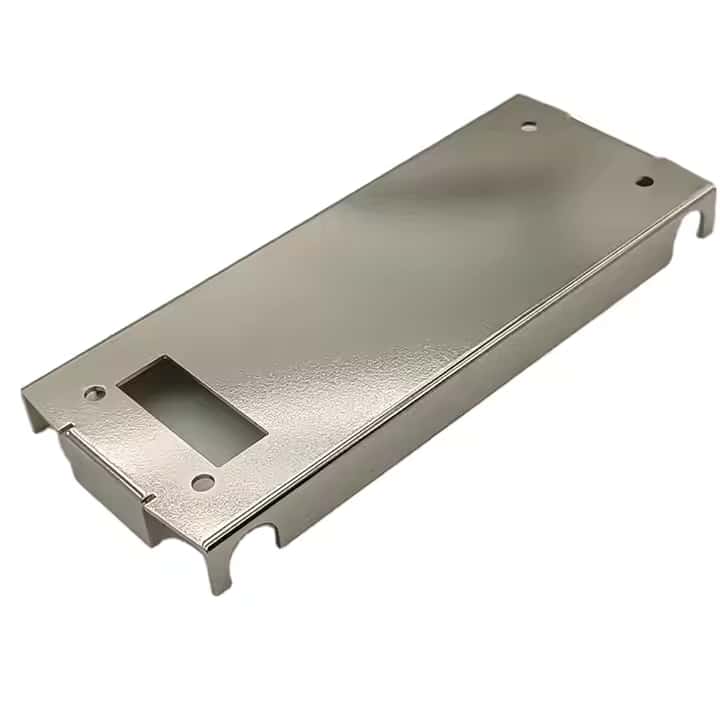

Custom Sheet Metal Parts
Custom Sheet Metal Brackets
China Deep Drawn Parts

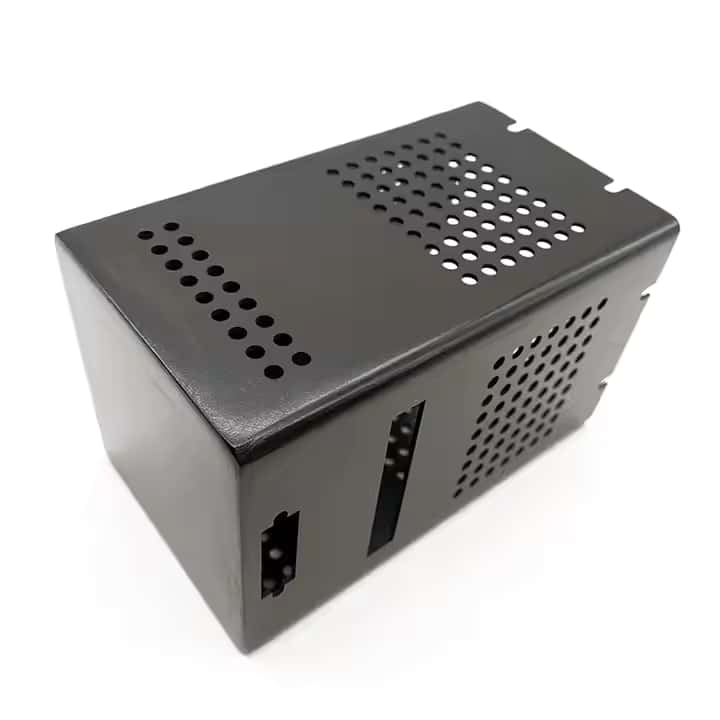

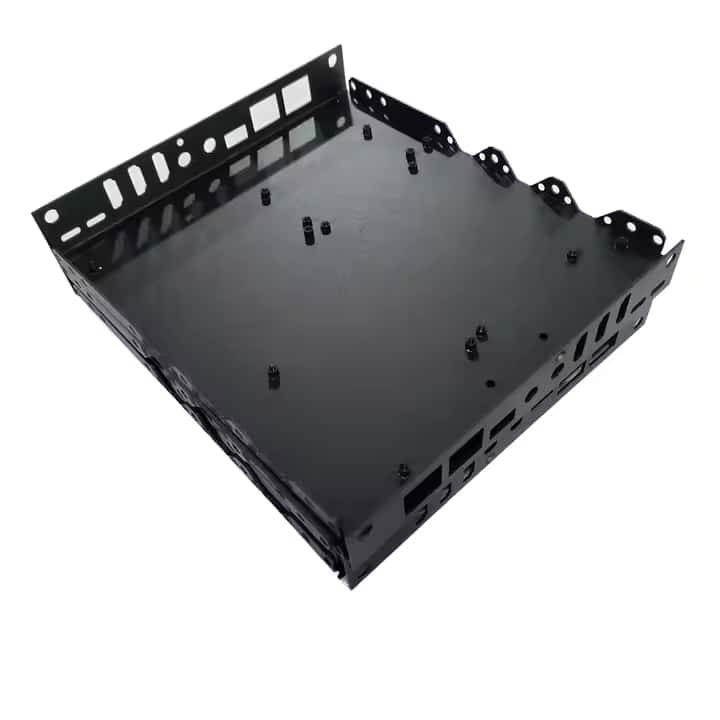

Custom Sheet Metal Enclosures
China Sheet Metal Fabrication Companies
China Sheet Metal Forming Manufacturers

Advanced laser cutting machines offer high precision, speed, and automation for industrial and high-end manufacturing applications, Here's a breakdown of the latest high-end laser cutting technologies and key considerations when choosing one:

1. Types of Advanced Laser Cutting Machines

A. Ultra-High-Power Fiber Lasers (6kW–30kW+)

Best for: Thick metals (steel, aluminum, titanium)

Key Features:

Extreme cutting speeds (e.g., 100+ m/min on thin sheets)

Pierces up to 50mm steel (with 15kW+ lasers)

Reduced burr & better edge quality (compared to plasma/waterjet)

Top Brands: Trumpf (TruLaser Series), Bystronic (ByStar Fiber), Amada (ENSIS), IPG Photonics

B. CO₂ Lasers with RF Excitation (High-End Industrial)

Best for: Precision non-metal cutting (acrylic, wood, composites)

Key Features:

Superior edge quality (smoother than diode lasers)

High-speed engraving (up to 1,000 IPS)

Compatible with hybrid cutting (laser + knife)

Top Brands: Trotec (Speedy Series), Epilog (Fusion Pro), Mitsubishi (ML-F Series)

**C. Green & UV Lasers (Ultra-Fine Cutting)

Best for: Electronics, medical devices, brittle materials

Key Features:

Cold cutting (minimal heat-affected zone)

Micro-cutting (<0.01mm precision)

Ideal for copper, silicon, ceramics

Top Brands: Coherent (StarCut Tube), LPKF (ProtoLaser)

**D. 3D Laser Cutting Robots (5-Axis & Beyond)

Best for: Automotive, aerospace (complex 3D parts)

Key Features:

Robotic arm + fiber laser integration (e.g., Fanuc, KUKA)

Dynamic focus adjustment for curved surfaces

Automated loading/unloading (Industry 4.0 ready)

2. Cutting-Edge Features in Advanced Machines

Feature Benefit

Automatic Nozzle Changer Switches nozzles for different materials/thicknesses without manual input.

Real-Time Monitoring (IoT) AI-driven adjustments for optimal cut quality (e.g., Trumpf BrightLine).

Hybrid Laser-Plasma Combines laser precision with plasma’s speed for thick metals.

Automatic Material Detection Camera-based systems adjust power/focus automatically.

Zero Light Protection Fully enclosed with safety interlocks for hazardous materials.

China Sheet Metal Parts Manufacturers | China Sheet Metal Fabrication Factory

China Sheet Metal Fabrication Manufacturing Manufacturers

China Sheet Metal Fabrication Manufacturers | Sheet Metal Manufacturers in China

Custom Sheet Metal Parts | Box Sheet Metal | Custom Sheet Metal Enclosures

Aluminum Sheet Metal Parts Prototype Sheet Metal Parts

3. Industry-Specific Recommendations

A. Aerospace & Automotive

Machine Type: 5-axis fiber laser (e.g., Mazak OPTIPLEX 3015 DDL)

Why? Cuts titanium, carbon fiber, and aluminum with tight tolerances (±0.05mm).

B. Electronics & Medical Devices

Machine Type: UV laser (e.g., Coherent Diamond E)

Why? Delicate cuts on PCBs, stents, and glass without thermal damage.

C. Heavy Industry (Shipbuilding, Construction)

Machine Type: 15kW+ fiber laser (e.g., Bystronic BySprint Fiber 15kW)

Why? Handles 40mm steel at production speeds.

4. Budget & ROI Considerations

Machine Type Price Range ROI Scenario

6kW Fiber Laser $150,000–$300,000 1–2 years (high-volume metal fabrication)

UV Laser Micro-Cutter $80,000–$200,000 2–3 years (medical/electronics niche)

5-Axis 3D Laser $300,000–$1M+ 3–5 years (aerospace/automotive)

5. Future Trends in Laser Cutting

AI Optimization: Machines self-adjust based on material defects.

Multi-Laser Systems: Single gantry with dual lasers (CO₂ + fiber).

Green Lasers for Copper: Eliminates reflectivity issues in EV battery production.


Final Checklist for Advanced Buyers

✅ Material & thickness? (UV for micron-level, 30kW fiber for 50mm steel)

✅ Automation needs? (Robotic arms, IoT integration)

✅ Precision level? (5-axis for 3D parts, UV for <0.1mm cuts)

✅ After-sales support? (Trumpf, Amada offer 24/7 remote diagnostics)
